Description

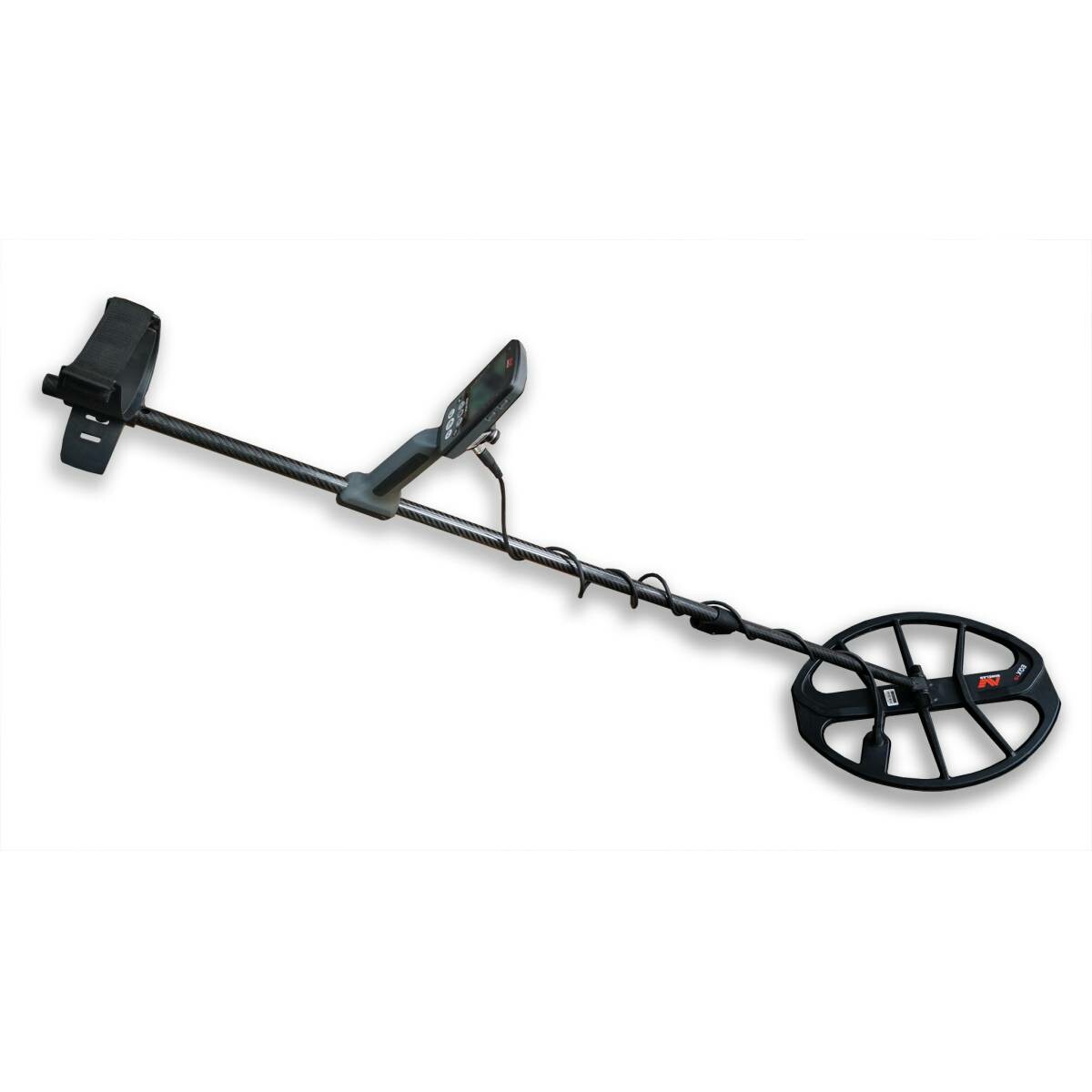

CMD Full Carbon Fibre Shaft for Minelab Equinox 600/800

Hands have been busy in the Crawfords workshop developing the ultimate lightweight carbon fibre stem for the Minelab Equinox metal detector. Our unique design offers the very best in quality and style to enhance your experience with the Minelab Equinox.

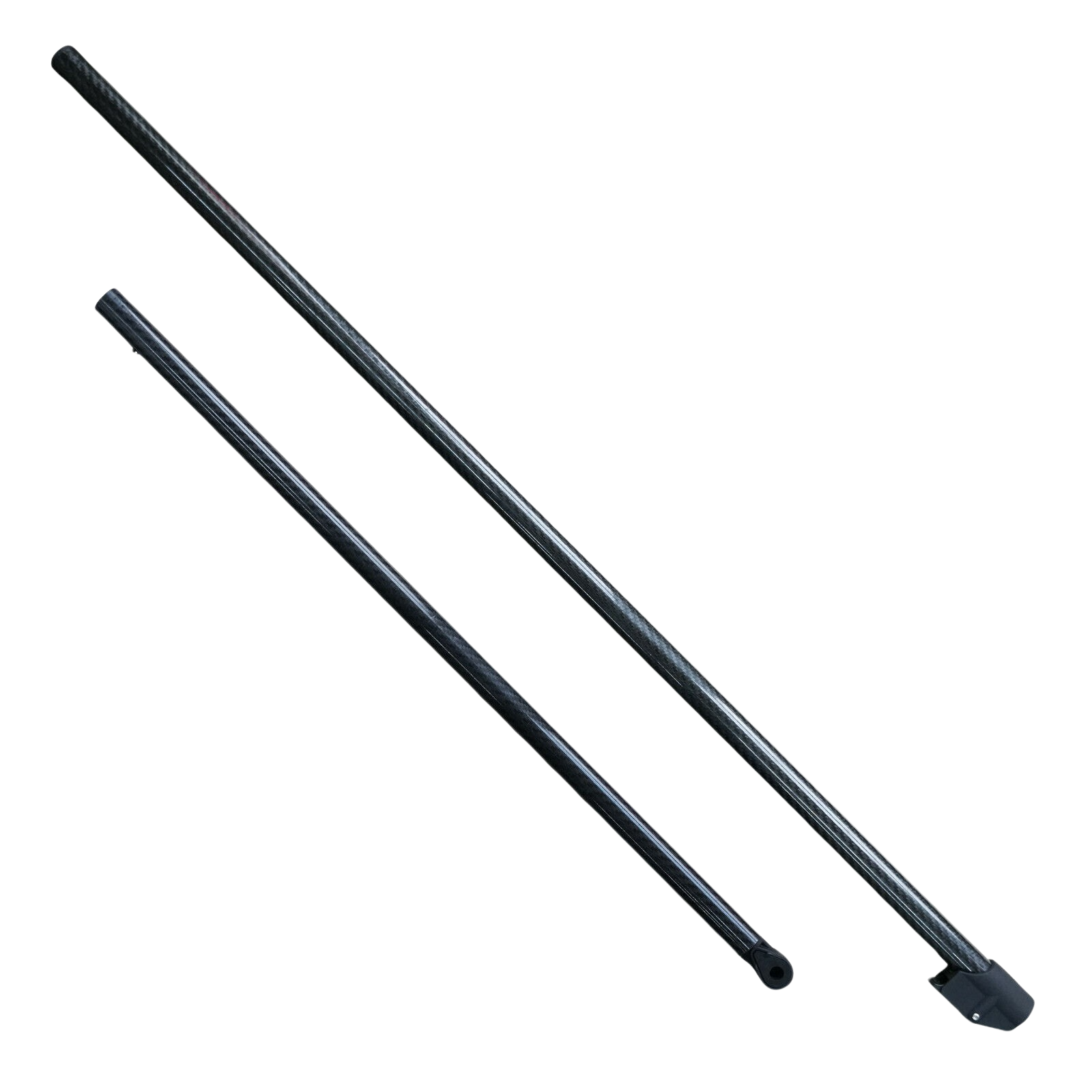

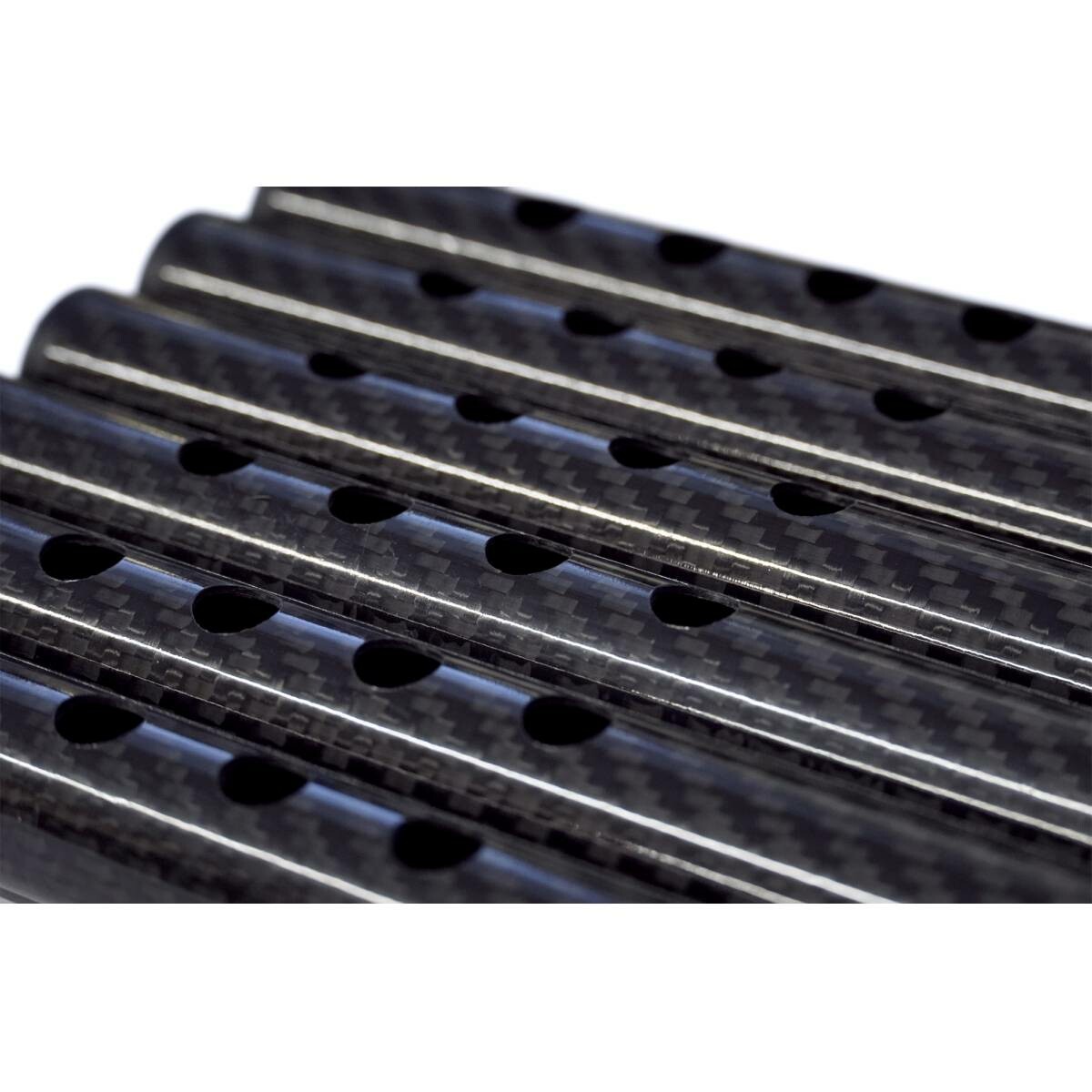

The two part construction is both strong and light while being easily adjustable. It has all the holes for adjusting the arm cup and total length from the original three piece shaft but will fold much shorter while fully assembled by retracting the lower stem almost fully into the upper.

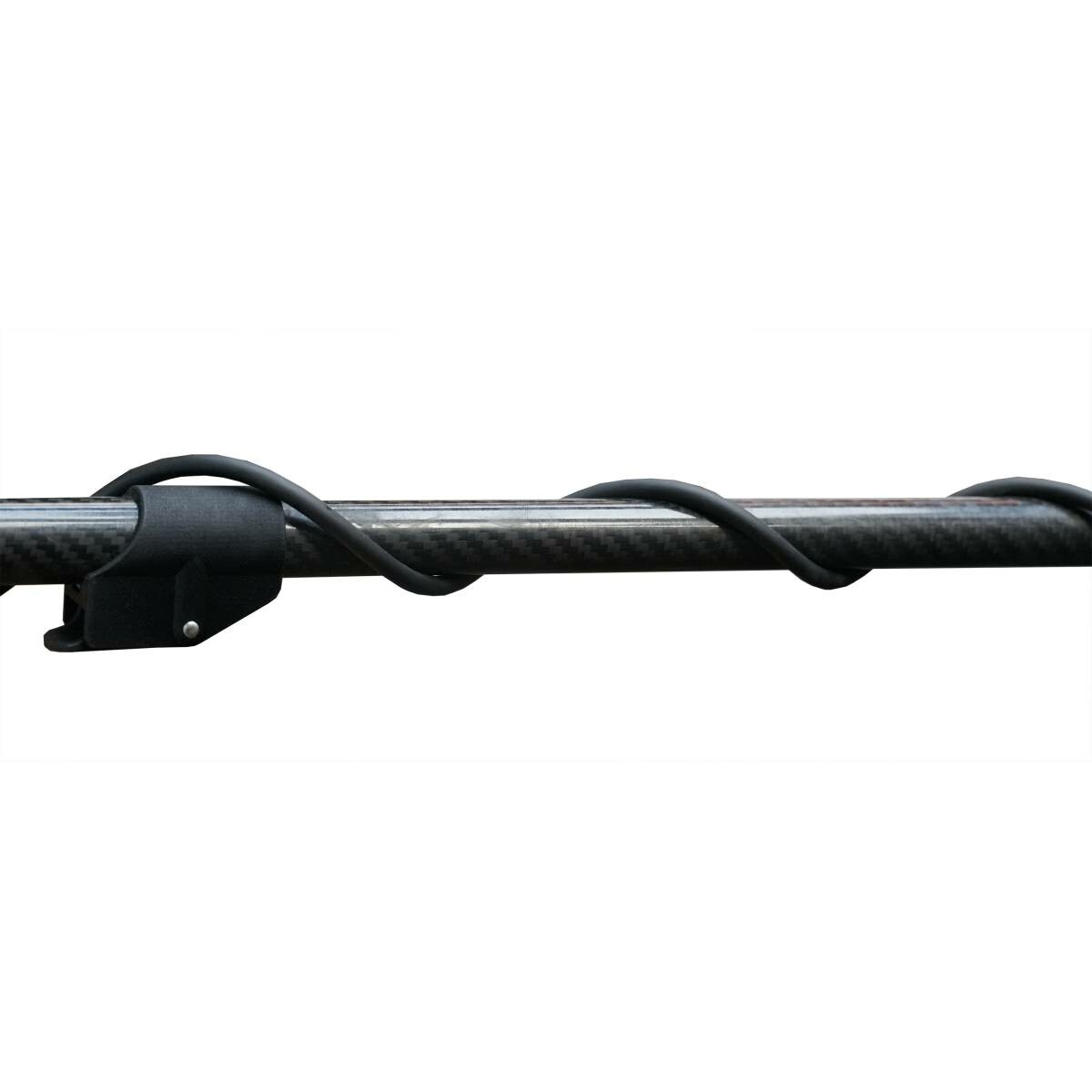

Adjustments to the lower stem is made simple by our own quick release, lever cam-lock made from tough light nylon and a no-nonsense one-piece stainless steel button clip. The cam-lock has been specially designed to be compatible with standard Minelab spare parts. In the event of wear the lever, pivot pin and press block may be replaced with those from the Minelab E-Trac and Safari cam-locks, giving you peace of mind that spares are available from Minelab outlets.

Enhanced Design

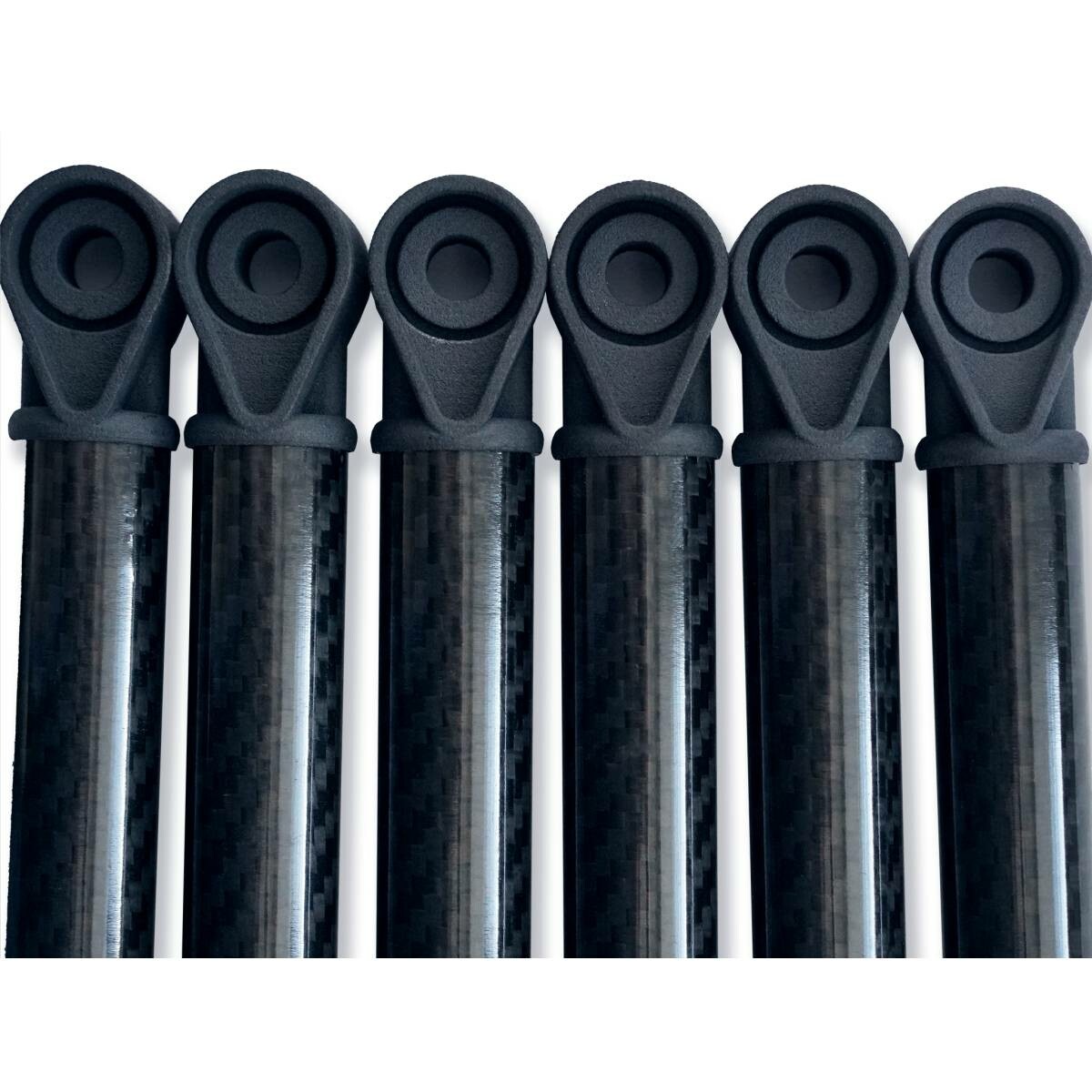

Since our first batch has sold out we have made a few tweaks to the design based on customer feedback to improve weight, durability and usefulness of the product. A slight change to the upper shaft specification allows the lower to slide more freely inside it. The lower shaft has shed a little weight since the first batch bringing it down to just 70 grams. We have also redesigned the iso-tip which holds the coil, now held in place with a flexible aerospace grade epoxy resin. A further enhancement is the addition of drain holes in the tip to allow water to run out freely after detecting in water.

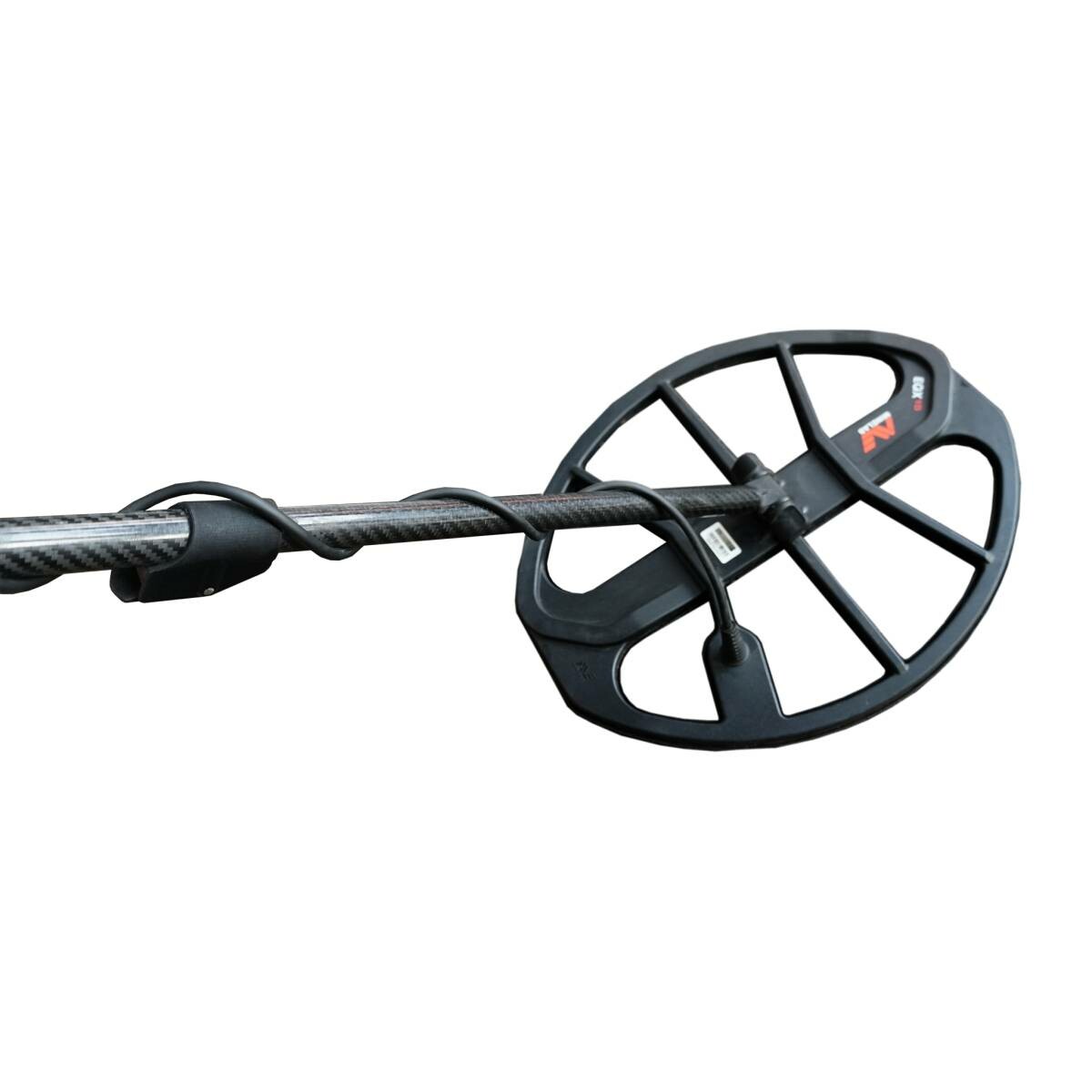

Our prototype design has been field tested with the 15" coil (EQX15) to ensure the cam-lock and button clip gives a firm hold free from any wobble.

In addition to this full shaft we can supply just the upper or the lower shaft separately.

Both parts are compatible and interchangeable with the standard Minelab Equinox shafts allowing you to swap and change parts at your convenience, for example a spare lower may be used to hold an accessory coil for quick change over.

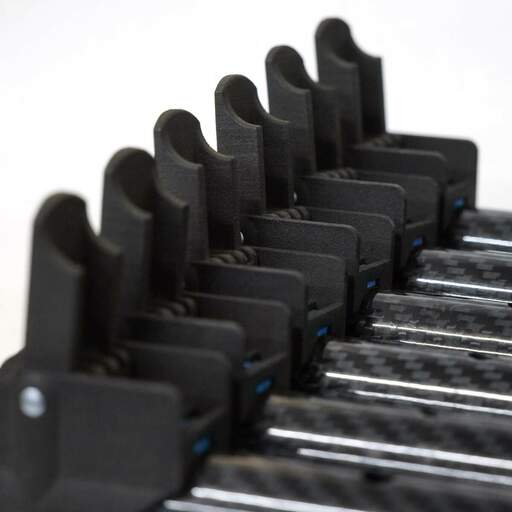

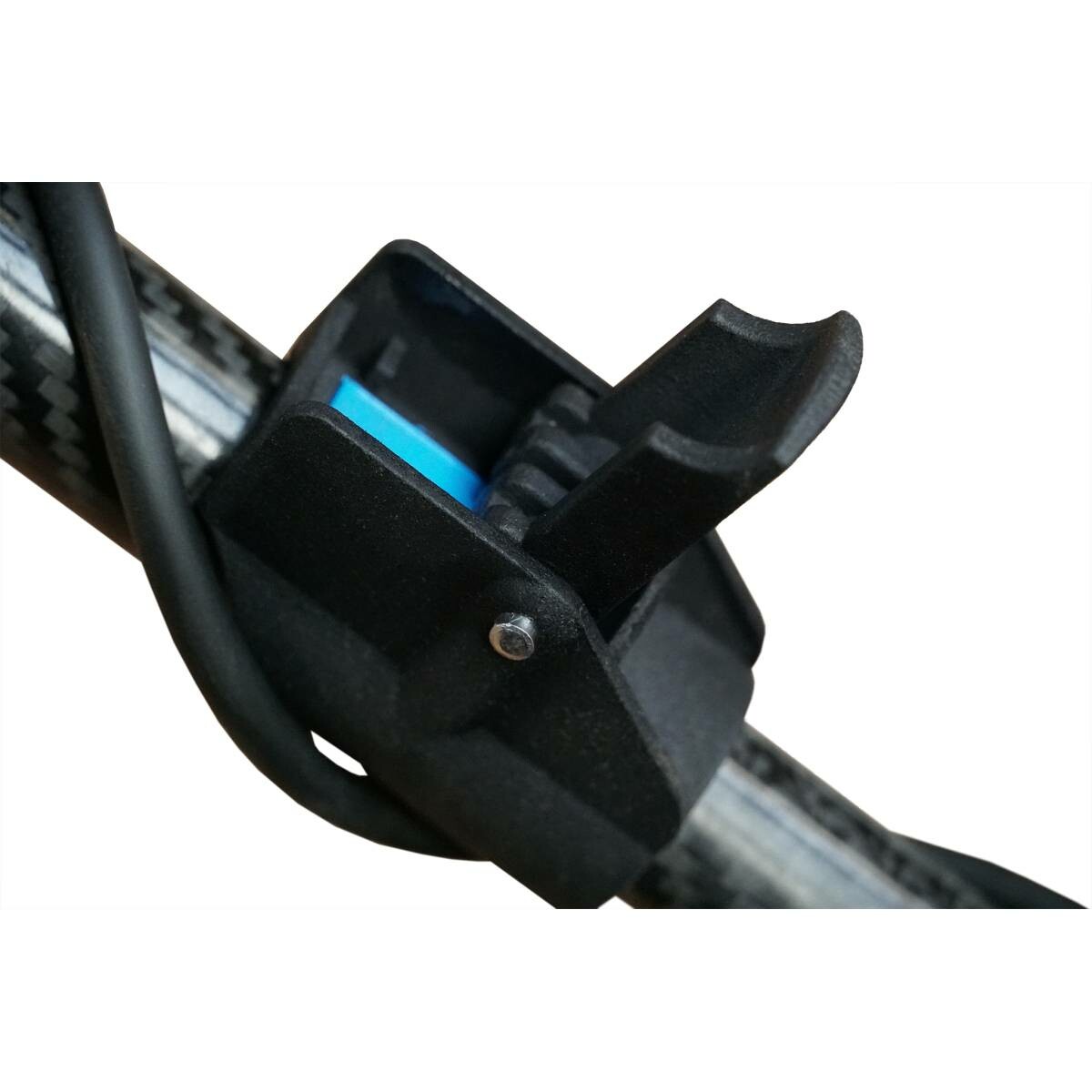

CMD's Quick Release Cam-Lock

Technical Data

Materials
Upper and Lower Shaft

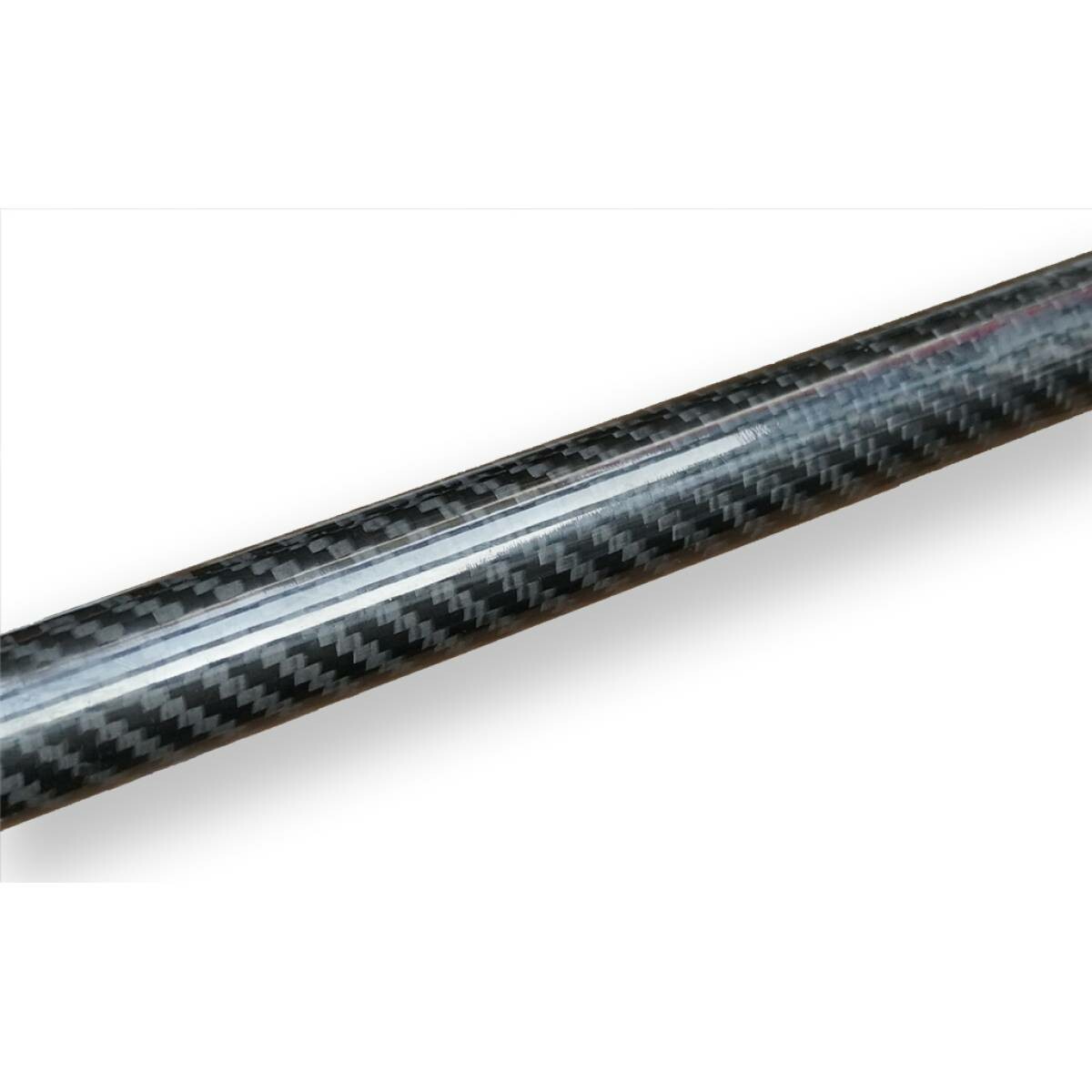

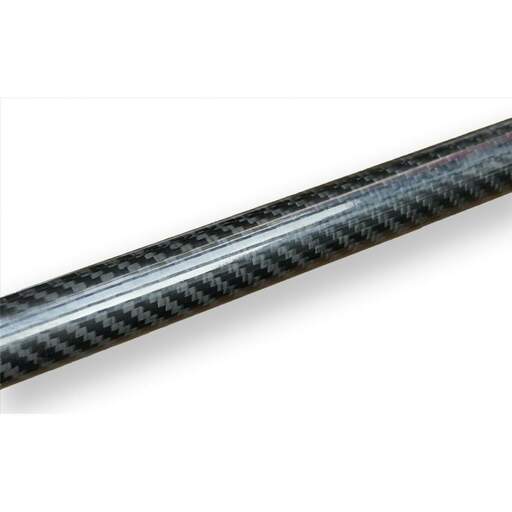

Carbon Fibre, for maximum strength at minimum weight.
Cam-Lock and Iso-Tip
Nylon, tough, durable and light.
Button Clip and Cam-Lock Pivot
Stainless Steel, avoids corrosion in salt water use.
Specification
Upper Shaft Length
880mm
Upper Shaft Weight
106g
Lower Shaft Length
615mm
Lower Shaft Weight
70g
Total Length Retracted
940mm
Max Length Extended
1378mm
Min Length Extended
1098mm
Total Weight
176g

Delivery

We aim to delivery goods to destinations within the U.K in 2-5 working days, please allow up to 7 days if you are advised that Royal Mail is the method of delivery. For Nex Day Delivery Order Need to Be place before 15:00
SKU: CMDCARBONSHAFT
Stock Status: Temporary Sold Out
